ST-11/11D Class 1 Sound Level Meter

Excellent Performance

Built in smart integrating algorithms and wide measuring range 27-140dB competent in most rigorous industrial use. Through friendly user interface and various output options, ST-11/11D can be controlled by telemetry and enables external system integration. Additional data logging and sound recording function in ST-11D help record long term data.
Lightweight, portable but perfectly formed. Scarlet ST-11/11D out stands the market with excellent performance.
Features

• 10 Hz-20k Hz frequency range
• 27 dB-140 dB measurement range
• Data logging & record function(St-11D)
• Measures and displays Leq value
• Long term measurement

ST-11/11D Class 1 Sound Level Meter
Excellent Performance
Built in smart integrating algorithms and wide measuring range 27-140dB competent in most rigorous industrial use. Through friendly user interface and various output options, ST-11/11D can be controlled by telemetry and enables external system integration. Additional data logging and sound recording function in ST-11D help record long term data.
Lightweight, portable but perfectly formed. Scarlet ST-11/11D out stands the market with excellent performance.


Features
• 10 Hz-20k Hz frequency range
• 27 dB-140 dB measurement range
• Data logging & record function(St-11D)
• Measures and displays Leq value
• Long term measurement
Where does Scarlet Class 1 Sound Level Meter Apply






Specification
Model | ST-11 | ST-11D |
Fulfils Standard | IEC 61672 Class 1 | IEC 61672 Class 1 |
Dimensions | 310×72×32 mm | 310×72×32 mm |
Normal frequency | 10 Hz~20 kHz | 10 Hz~20 kHz |
Measurement range | 27 ~140 dB | 27 ~140 dB |
Main Parameters of Measurement | LFp, LSp, LIp, Leq1, Lpeak, Leq,T, LFmax, LFmin, LSmax, LSmin, LImax, LImin, SEL,Ts, Tm, Volt, E. | LFp, LSp, LIp, Leq,t, Lpeak, Leq,T, LFmax, LFmin, LSmax, LSmin, LImax, LImin, SEL, Lex8h, LAVG, TWA, DOSE, Ln1, Ln2, Ln3, Ln4, Ln5, SD,Ts, Tm, Volt, E. |

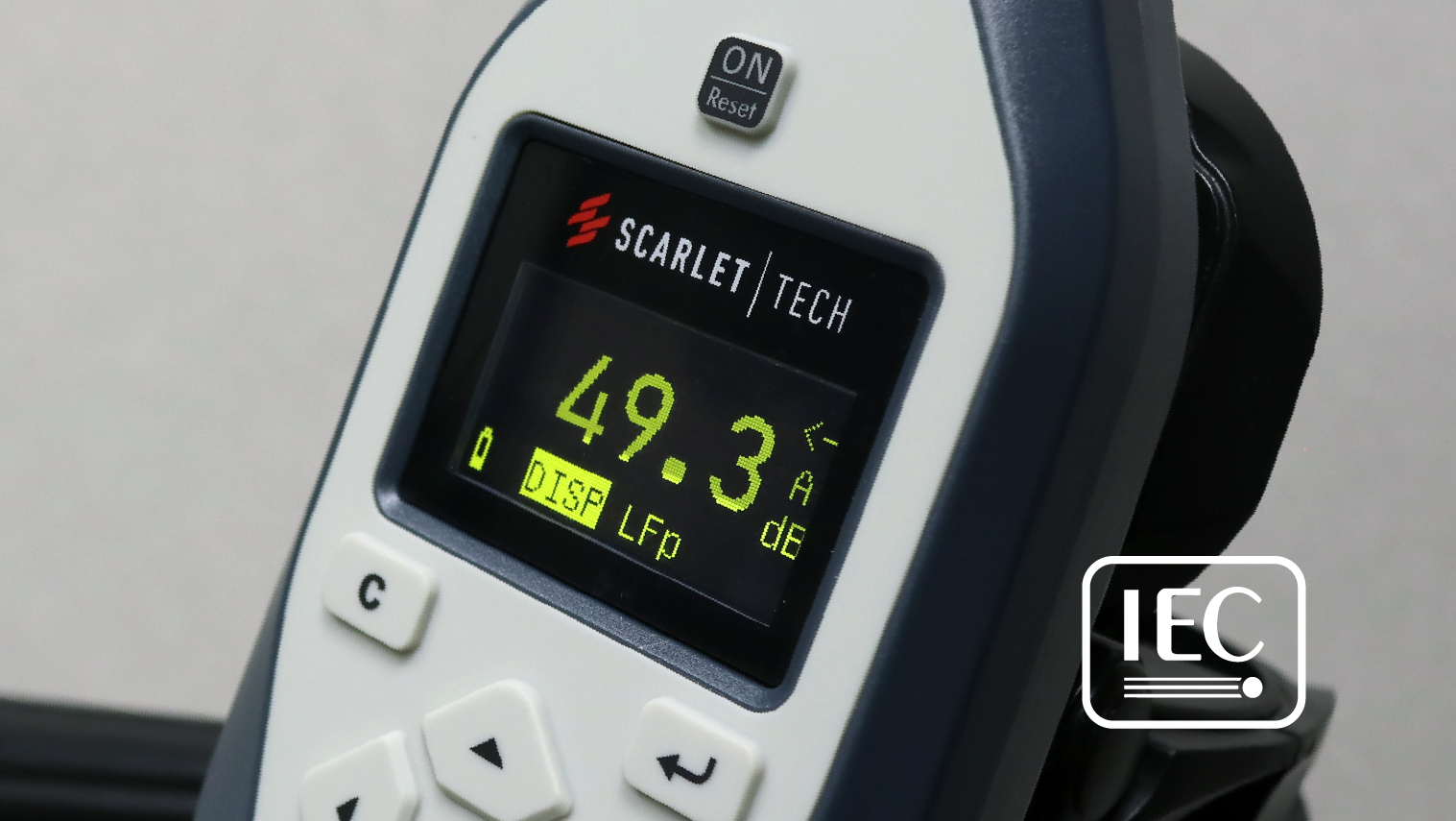

Display | 128×64 OLED | 128×64 OLED |
Weight | 0.4kg | 0.4kg |
Application | Noise integrating measurement | Sound level meter/ Noise Dosimeter/Data logging & Precision recording(Opt) |
Power Supply | battery 4×LR 6 | battery 4×LR 6 or external power supply |

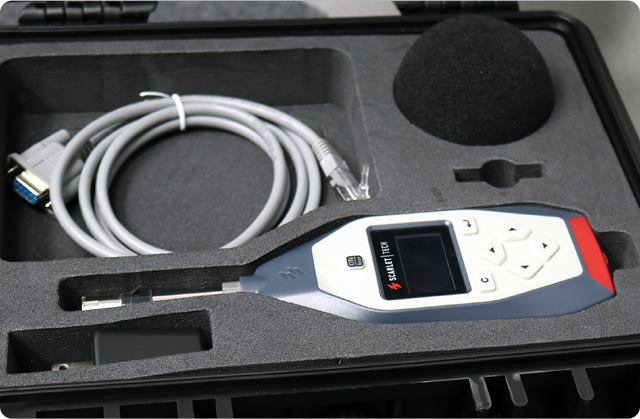

Contents | Meter, microphone, windscreen, calibration certificate, carrying case, English manual |

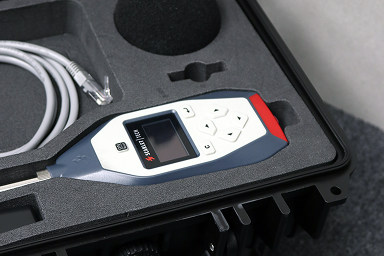

A Class 1 Sound Level Meter is a noise measurement instrument that meets the requirements of IEC 61672-1:2002 (or an equivalent such as BS EN 61672-1:2003) to Class 1 performance.
This standard specifies two levels of performance, Class 1 and Class 2, with Class 1 being effectively more accurate. Within the standard are a set of performance criteria that an instrument must meet and each of these has a tolerance associated with it. The tolerances for Class 1 are tighter than for Class 2. For example, at the reference frequency of 1kHz, the tolerance limits for Class 1 are +/- 1.9dB and for Class 2 the tolerance is +/- 2.2dB.
A simple sound level meter that meets the standard may only provide Sound Pressure measurements whereas a much more sophisticated instrument may provide for the measurement of Sound Pressure, Leq and Peak Sound Pressure.For example, the Noise at Work Regulations which are used in the UK requires, as a minimum, the measurement of LAeq and LCPeak.
Whether you need a Class 1 or a Class 2 sound level meter will depend largely upon the application that you will be using the instrument for.
If you are working to an environmental noise standard then this may specify that the instrument should be Class 1. For example, ISO 20906:2009 “Unattended monitoring of aircraft sound in the vicinity of airports” states that “..shall conform to the electroacoustical performance specifications of IEC 61672-1 for a class 1 sound level meter.”
The Class 1 sound level meter tend to measure lower levels due the sensitivity of the microphone capsule. This is particularly relevant for environmental noise surveys where low noise levels are being measured. Finally, you may choose Type 1 for important legal applications as the evidence from the more accurate meter may be more convincing, even when the regulations do not demand it. Class 1 sound level meter is preferred for the design of cost-effective noise controls.
